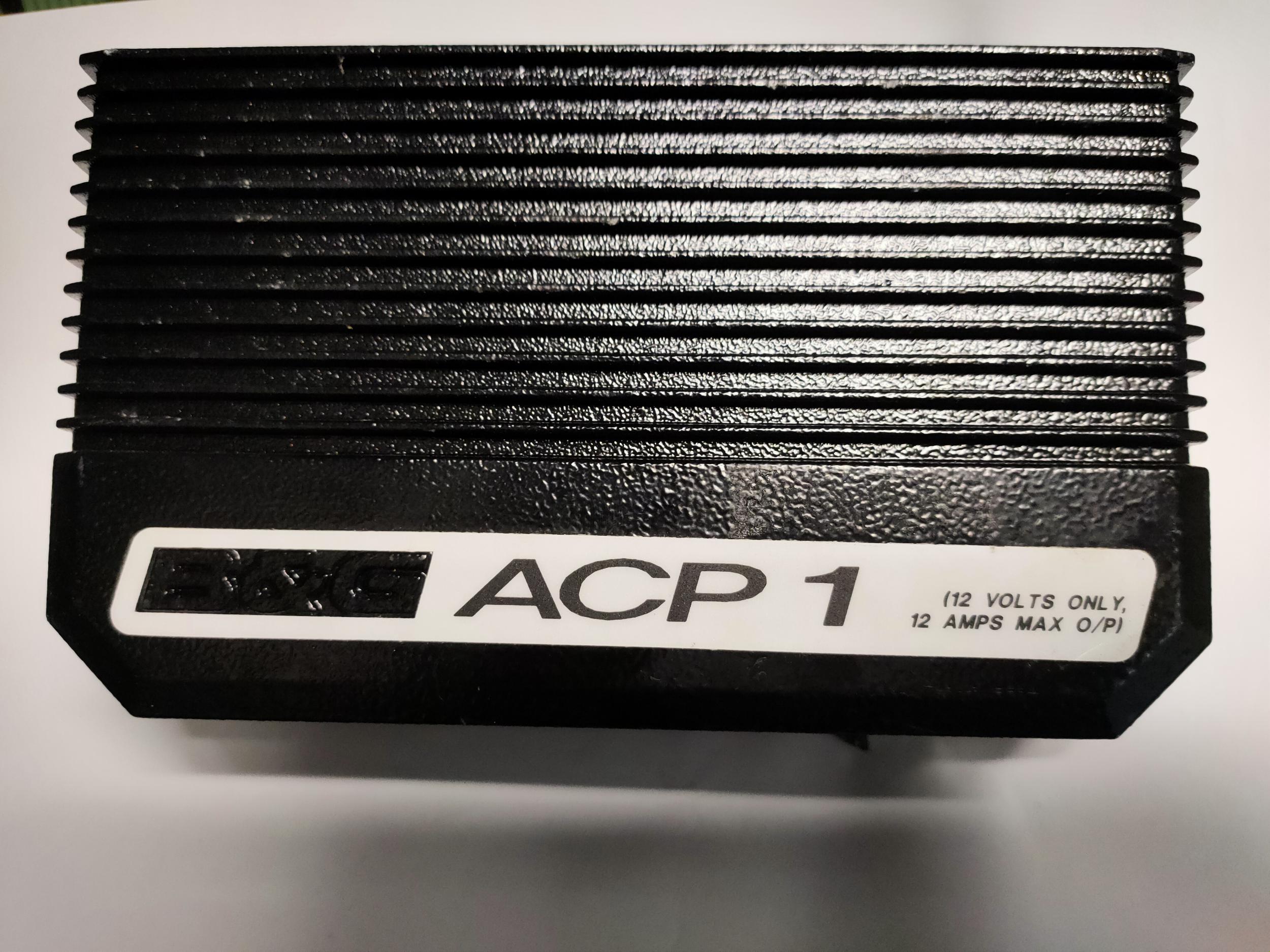

B&G ACP 1 CPU PILOT USATO

  • Codice: BGH170001
frees Spedizione gratuita
€ 950,00
B&G ACP 1 CPU PILOT USATO
The B&G H3000 Pilot is designed to meet the specific requirements of sailing yachts. Features and algorithms are developed to provide a safe and fast Pilot. Steer-to Compass Steer-to Apparent or True Wind Angle Steer-to Waypoint Power Steer mode SmartTack and SmartGybe Enhanced Response, Recovery and Auto Response features for optimum course keeping (requires Halcyon Gyro-Stabilised Compass BGH060001 or BGH060004) Compatible with a wide range of common drive types
The new Gimballed Rate Compass (GRC) has been designed to bring the full advantage of single-axis rate-sensors to the sailing market. Normally a single-axis gyro is fixed in the plane of the boat, this means that when the boat is heeled the rate-gyro is susceptible to errors when the boat pitches fore and aft. The GRC solves this problem by gimballing the rate-sensor, ensuring that it is always measuring the true Yaw Rate, independent of any heel and trim effects. The GRC also integrates high-accuracy Heel and Trim sensors. Lightweight, single-axis, gyro-stabilized compass. High accuracy Heel and Trim output Interfaces directly to H3000 ACP Pilots Fast NMEA 0183 and SimNet output
Technical Specifications Dimensions: 207 x 135 x 90mm Weight: 3.1kg/6.8lbs Construction: Powder Coated/Zinc casing Supply Voltage: 12V (12-24 vDC Drive) Power Consumption (electronics): 100mA Maximum Current: 20A (ACP1) - 40A (ACP2) Sealing: IP65 Operating Temperature: -10 to +55°C/14 to 131º F Humidity Range: Up to 95% rh Compass Safe Distance: 100mm/4in
